AWNLUX RV Slide Out Awning - Black & White
AWNLUX RV Slide Out Awning - Black & White - 5'6" (5‘1“ FABRIC) / Black is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
(Shipped from LA or NJ) Order delivery estimate: April 07 - April 09.
Free shipping
60-day return
1 year warranty
RV slide topper awning size guide
| Slide out topper size (measured from left flange to right flange) | Recommend slide awning size | Actual fabric covered size |
| 56" to 61 ¾"" | 5'6" | 61" |
| 62" to 67 ¾"" | 6' | 67" |
| 68" to 73 ¾"" | 6'6" | 73" |
| 74" to 79 ¾"" | 7' | 79" |
| 80" to 85 ¾"" | 7'6" | 85" |
| 86" to 91 ¾"" | 8' | 91" |
| 92" to 97 ¾"" | 8'6" | 97" |
| 98" to 103 ¾"" | 9' | 103" |
| 104" to 109 ¾" | 9'6" | 109" |
| 110" to 115 ¾" | 10' | 115" |
| 116" to 121 ¾" | 10'6" | 121" |
| 122" to 127 ¾" | 11' | 127" |
| 128" to 133 ¾" | 11'6" | 133" |
| 134" to 139 ¾" | 12' | 139" |
| 140" to 145 ¾" | 12'6" | 145" |
| 146" to 151 ¾" | 13' | 151" |
| 152" to 157 ¾" | 13'6" | 157" |
| 158" to 163 ¾" | 14' | 163" |
| 164" to 169 ¾" | 14'6" | 169" |
| 170" to 175 ¾" | 15' | 175" |
| 176" to 181 ¾" | 15'6" | 181" |
| 182"to 187 ¾" | 16' | 187" |
AWNLUX RV Slide Out Awning - Black & White
| Brand: | Awnlux® |
| Model: | W5250C |
| Awning Type: | Slide Topper Kit |
| Roller Model: | Slide Topper |
| Frame Material : | Aluminum |
| Frame Color ： | Black/White |
| Fabric Material : | 16 oz. Vinyl |
| Fabric : | 1000D PVC Tarpaulin |
| Size Range : | 5'6''~16' |
| Control System : | Manual |
| Flame Retardant Rating: | B1 |
| Tensile Strength: | 140 PSI |
| Roller Projection: | 48" |
Customer Reviews
I reported that the poly cord was damaged when it arrived. I was able to use black tape to secure it so I could at least install the Slide Topper for our upcoming trip. But I would like to have it replaced. The company's reply:
"Thank you for your concern regarding this. Since the awning size you purchased is relatively small, the pressure on the poly cord is minimal. Therefore, a breakage would not significantly affect the awning fabric performance."
If I ever have to re-tension the fabric, I have to pull the cord out first. I could easily see the black tape coming loose and ripping the fabric as I remove it.

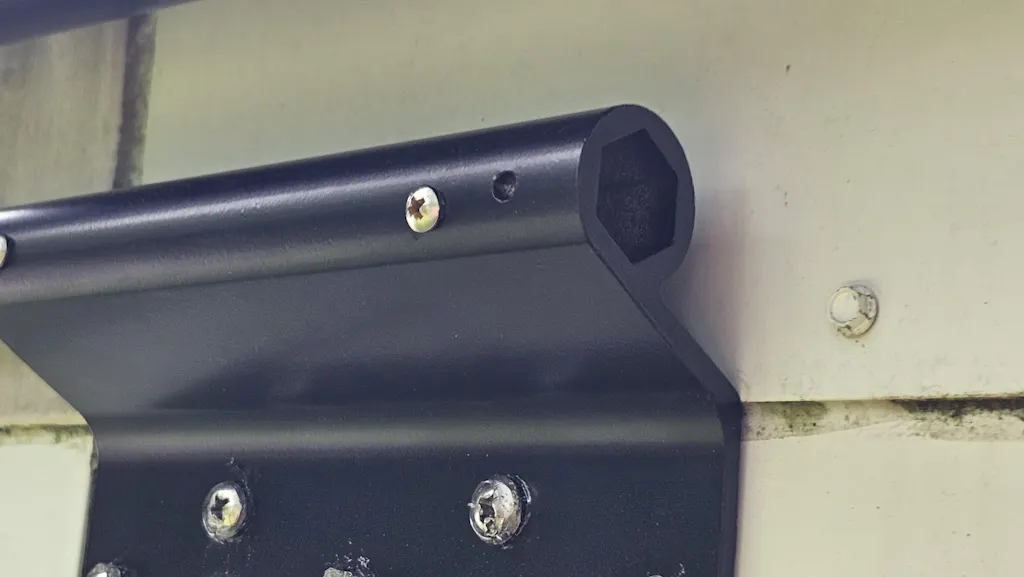

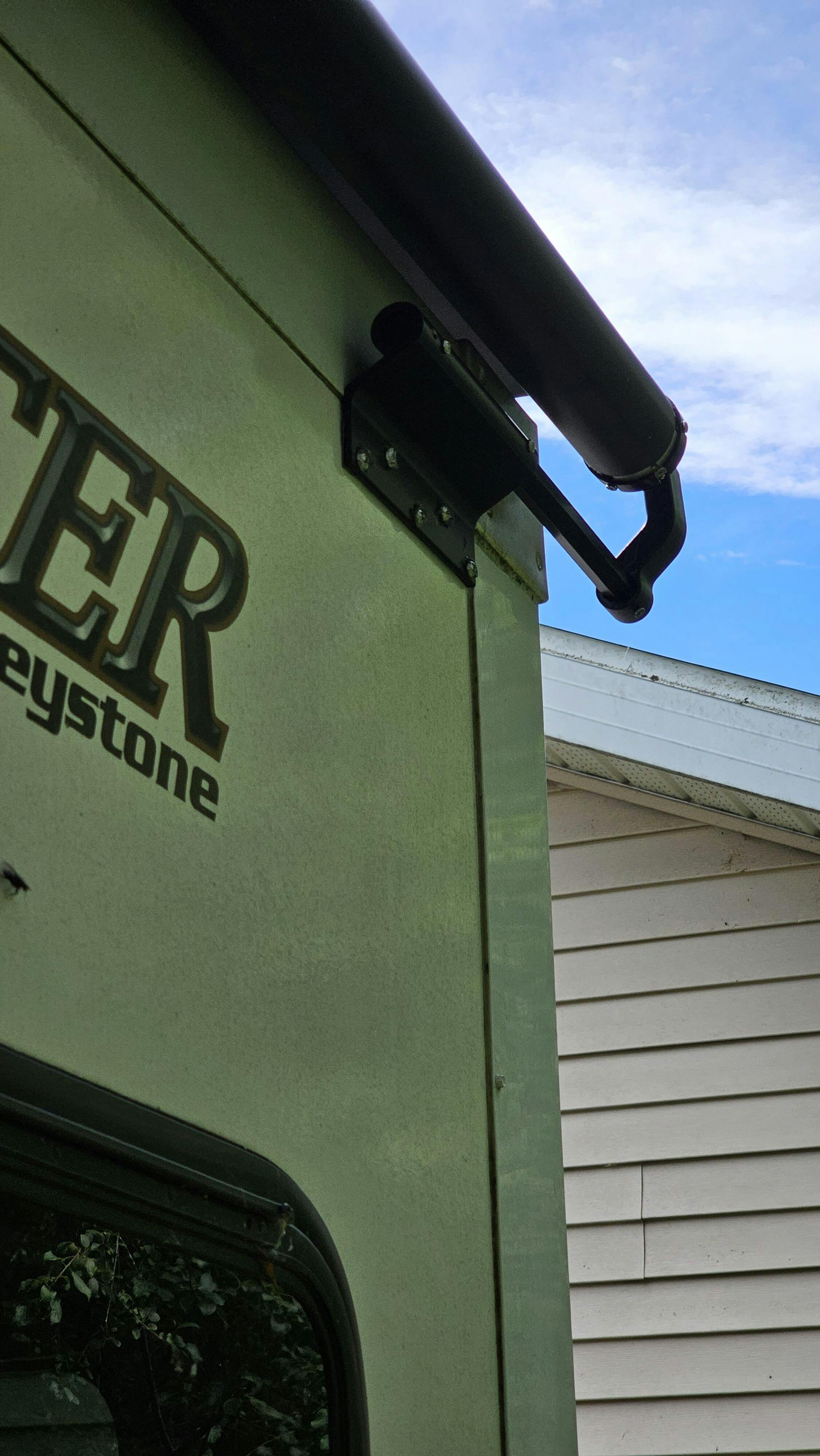

Packaged well. All contents accounted for plus extra hardware in case you strip, break or loose one. Only negative thing I can say is that to properly fasten the mounting plate to the slidout framework the arms are an inch short sliding into that plate as seen on the picture. Not sure if this is true with all manufacturers but I would personally want the plate properly secured, so I gave up the 1 inch on the arms.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Modular Slide Out Awning Highlights
Our assembly comes complete with everything needed for an easy installation, including a slide-out topper roll, brackets, hardware, and railing to mount your slide topper. Resists tearing, puncturing, and ripping. Heavy-duty, durable slide-out protection from dirt, debris, and water infiltration.
Military-Grade PREMIUM 16OZ VINYL MATERIAL
-
![RV slide-out toppers and awnings protect your slide box from mildew and rain. Easy to DIY install.]()
Hot-pressing technology
Neat Stitching, Needle-Free Edge Cord. Heavy-Duty & Durable Slide Topper Awning for Extra Protection
-
![Awnlux rv slide topper awning fits slide-outs that extend up to 51"]()
Modular & Flexible DIY Installation
Modular Design for Flexible Installation, Perfect for DIY. Fit slide-outs that extend up to 51"
-
![AWNLUX rv awning fabric is made of super strong and durable 1000D PVC Tarpaulin material.]()
4 Layer 1000D PVC tarpaulin
16 Oz Super Heavy Material Innovated Technology, -49°F NO-Crack
-
![RV slide-out toppers and awnings protect your vehicle from mildew and rain.]()
Enhanced Hexagonal Rod
Unique hexagonal rod design for superior strength and durability.
How to measure and confirm your RV slide out awning size
- Please make sure your slideout extension distance is smaller than 51 inches or 4 feet. Measure the edgeto edge distance of your slideout and make sure that the fabric size you choose (not awning size) can fully cover the top of your slide out.
- If your slide topper has an old awning, please measure the old awning fabric size. If not, measure the flange edge to edge distance of your slideout and set it as your fabric size. Your awning size should be 7 inches longer than the fabric size.
-
![How to measure your slide out awning size? You need to measure the edge to the edge of your slide topper box]()
Step 1: Locate the side-out flange
-
![RV slide-out toppers and awnings protect your slide-out box from mildew and rain and are easy to install yourself. The AWNLUX RV Slide Topper Kit can replace Solera, Dometic, Lippert, and Camping World slide-out awnings. Designed to fit most campers, trailers, motorhomes, and 5th wheel trailers, this kit includes RV brackets, a roller tube, awning fabric, hardware, screws, and more.]()
Step 2 : Please measure the box extension size
-
![RV slide-out toppers and awnings protect your slide-out box from mildew and rain and are easy to install yourself. The AWNLUX RV Slide Topper Kit can replace Solera, Dometic, Lippert, and Camping World slide-out awnings. Designed to fit most campers, trailers, motorhomes, and 5th wheel trailers, this kit includes RV brackets, a roller tube, awning fabric, hardware, screws, and more.]()
Step 3: Match your flange to flange measurement to the fabric width
-
![RV slide-out toppers and awnings protect your slide-out box from mildew and rain and are easy to install yourself. The AWNLUX RV Slide Topper Kit can replace Solera, Dometic, Lippert, and Camping World slide-out awnings. Designed to fit most campers, trailers, motorhomes, and 5th wheel trailers, this kit includes RV brackets, a roller tube, awning fabric, hardware, screws, and more.]()
Step 4 ：Choose your awning color
Versatile Compatibility with All RV Types
Awnlux Modular Slide Toppers are the perfect addition to any RV featuring a slide-out. Economical, attractive, and compatible with many leading awning brands, the Slide Topper automatically extends and retracts right along with your slide-out.
Awning care and maintenance
- Regularly check if the awning fastenersare kept tight. lf they are loose,tighten all fasteners. Periodically clean the awning fabric and arms.
- How to clean awning fabric
Monthly, flush off the awning fabric with clean water and thoroughly cleanthe fabric with a soft brush and warm water every one or two years.
Note: When you clean the fabric only use natural soap and clean water andmake sure ALL the cleaner is rinsed off after cleaning. Never use detergent.oilbased cleaners, or any caustic, granulate, or abrasive type cleaners.Airdry, DON'Troll up the awning until the fabric is completely dry.Vinyl fabric offers the advantage of durability and water resistance.Wrinkling may be more noticeable when retracted and after prolongedperiods of storage. in warm weather, open it up for a period of time tominimize the wrinkling. Leave the awning open during warm weather tominimize the wrinkling over time.
