Many users believe that installing a wall-mounted awning is simply a matter of fixing the bracket to the vehicle body and then attaching the awning to the bracket. However, the long-term stability of an awning largely depends on proper installation.
Improper installation location, insecure bracket fixing, horizontal installation deviations, and inadequate sealing of holes can all lead to problems such as malfunctioning awning, rainwater leakage, loose brackets, and even abnormal motor load. These issues are often not caused by the product itself, but by improper installation details. Therefore, correct installation not only affects the initial user experience but also the stability and durability of the awning for years to come.

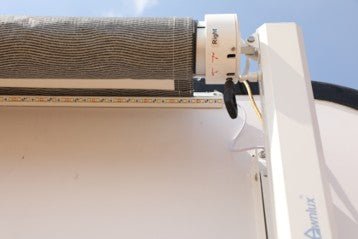

This article will use the AWNLUX W5600 manual wall-mounted awning and W5700 electric wall-mounted awning as examples, and, in conjunction with the official installation instructions, will break down the entire installation process in detail. From pre-installation planning and installation location confirmation to bracket fixing, main body installation, wiring connection and final debugging, we help users understand each key step and the technical points behind it.
Preparation: Getting Ready Before Installation
Successful RV awning installation starts long before the first screw is tightened. Proper preparation not only makes the installation process easier but also helps prevent unnecessary adjustments, installation errors, and potential damage to your RV.
Before installing your Awnlux RV awning, take a few minutes to verify that all components, tools, and mounting conditions are ready. A well-prepared installation will save time and ensure a safer, more reliable result.
l Check the Package Contents (Take Model W5600N as an Example)
Before installation, compare the contents of the package with the official packing list to ensure nothing is missing or damaged during transportation.
A typical Awnlux RV awning kit includes:
- RV awning assembly
- Support arms
- Mounting brackets
- Hardware kit (bolts, screws, fasteners)
- Electric control components (for W5700 models)
If any parts appear damaged or incomplete, contact your supplier before beginning the installation.
l Prepare the Required Installation Tools
Having the right tools on hand will make installation more efficient and improve accuracy.
Common tools include:
- Tape measure
- Spirit level
- Electric drill
- Step ladder
- Socket wrench or spanner set
- RV-grade sealant
Each tool plays an important role in ensuring proper alignment, secure fastening, and weather-resistant sealing.
l Verify the Mounting Location
Before drilling any holes, carefully inspect themounting area on your RV.
Make sure:
- There is sufficient space for the awning cassette and support arms.
- Doors, windows, slide-outs, vents, and exterior lights will not interfere with awning operation.
- The mounting brackets can be secured to structural members rather than thin exterior panels.
- The awning has enough clearance to fully extend and retract safely.
Because RV awnings are relatively large and heavy, Awnlux recommends that at least two people work together during installation to improve safety, alignment accuracy, and overall efficiency.
Recommended image: RV side-wall diagram highlighting the recommended installation zone and areas to avoid.
Install the Wall Mount RV Awning Step by Step
Installing a Patio RV awning requires careful preparation and accurate positioning. Whether you are installing a manual RV awning like the Awnlux W5600 or an electric RV awning like the W5700, the most important step is making sure the mounting structure is properly aligned and securely attached to the RV body.
Before drilling into your RV sidewall—whether you are replacing a legacy Carefree of Colorado or Dometic awning, or upgrading to a heavy-duty Awnlux patio awning—understanding your specific model's footprint is critical. Before installation, prepare basic tools including a drill, measuring tape, level, marker, screwdriver, ladder, and silicone sealant. It is also recommended to have 2–3 people available, as the awning assembly can be large and difficult to handle alone.
Step 1: Measure and Mark the Installation Position
Start by confirming the correct mounting height and horizontal position on the RV wall. Use a level to ensure all mounting points are aligned correctly.
For both manual and electric RV awnings, all brackets must be installed on the same plane. The mounting positions should remain clear of doors, windows, and interior cabinets. Before drilling, mark all mounting holes carefully and apply structural sealant to prevent water intrusion after installation.
Step 2: Install the Mounting Brackets and Arms
After confirming the mounting locations, secure the brackets to the RV wall.
For the manual W5600 RV awning, install the upper and lower brackets first. Leave the top right bracket unattached. Then attach the front arms.Make sure both arms remain vertical and parallel to each other before continuing the installation.
For the electric W5700 awning, install the Z-type brackets and arm assemblies, ensuring the arms are perpendicular to the ground. The brackets, awning rail, and back arms should be sealed properly before final use.
Step 3: Assemble and Install the Roller Tube
The roller tube may consist of multiple sections depending on awning size. Connect each tube section carefully, making sure the grooves and screw holes are perfectly aligned before tightening the connectors.
Next, install the fabric onto the roller tube. Insert the poly cord into the fabric sleeve, slide the fabric into the correct roller tube channel, and check that the fabric is centered evenly on both sides. Correct fabric alignment helps prevent uneven rolling and improves long-term performance.
Step 4: Complete Model-Specific Installation
For a manual RV awning such as the W5600, the final installation focuses on spring tension adjustment and fabric securing. After connecting the roller tube to the arms, ensure the awning fabric rolls evenly and remains properly tensioned.
For an electric RV awning such as the W5700, additional electrical connections are required. Connect the motor wiring to the 12V power supply, route cables through the arm protection area, and secure all connections against moisture. After wiring, the motor limits should be adjusted so the awning opens and retracts to the correct positions.
Step 5: Test the RV Awning Operation
After installation is complete, perform a full opening and closing test.
Check that:
The awning extends and retracts smoothly.
The fabric remains centered and tight.
The arms operate evenly.
The motor functions correctly on electric models.
A properly installed RV patio awning not only improves outdoor comfort but also helps prevent premature wear caused by incorrect alignment or installation.
Do not consider the job finished immediately after installing the main awning unit. Before putting it into regular use, perform a comprehensive inspection and adjustment to ensure all components are securely installed and operating smoothly, thereby minimizing future maintenance issues.
Final Inspection and Adjustment for Reliable Performance
After completing the main installation of the awning, do not stop operation immediately. Before formal use, a comprehensive inspection and adjustment are necessary to ensure that all components are securely installed, operate smoothly, and minimize subsequent maintenance issues.
First, check all mounting bolts and fasteners one by one to ensure that nothing is loose or missing. Next, check that the drilled holes and screw positions on the vehicle body are properly sealed to prevent rainwater from entering the vehicle interior through these holes. Adjust the awning angle appropriately according to the installation environment, maintaining a certain tilt to allow rainwater to drain smoothly, reducing water accumulation and awning sagging.
After completing the above checks, conduct 2-3 consecutive opening and closing tests. Observe whether there are any jamming, abnormal noises, deviation, or asynchrony between left and right sides during the operation of the awning. Also, confirm that when fully retracted, the roller and support arm fit snugly against the vehicle body.
If the W5700 motorized awning is installed, the motor and wall switch also need to be tested separately, and it needs to be confirmed that the emergency manual retraction device can be used normally.
The final few minutes of checks can often prevent a lot of maintenance work later. Only after confirming that all functions are normal can the awning be considered truly installed and ready for use.
Enjoy Reliable Shade with a Properly Installed RV Awning
A high-quality wall-mounted awning depends not only on the product itself but also on a standardized installation process. From pre-installation planning and measurement to bracket fixing, main body installation, electrical connections, and final inspection and adjustment, each step directly affects the awning's performance and durability.
The AWNLUX W5600 and W5700 both utilize a proven wall-mounting structure and come with comprehensive official installation instructions and standardized installation plans. Following the recommended installation process ensures a stable, safe, and comfortable outdoor sunshade experience, whether for everyday camping or long-distance travel.
Please feel free to contact Awnlux team to provide you with professional product recommendations and selection advice based on your vehicle model, installation location and usage requirements.
