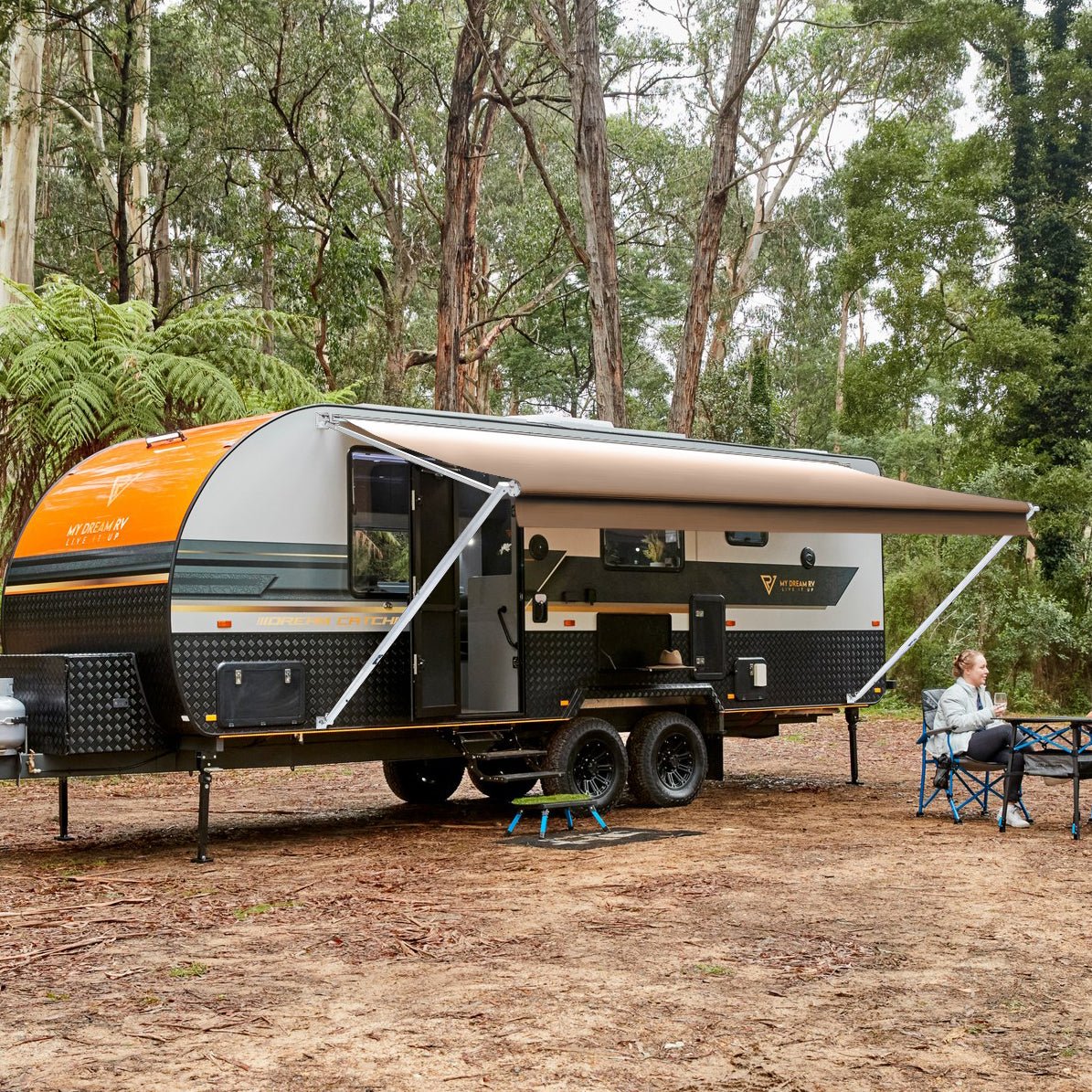

AWNLUX RV Patio Manual Awning - White Frame
AWNLUX RV Patio Manual Awning - White Frame - 8 Feet / Grey Fade / White is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Order delivery estimate: October 19 - October 21.
Free shipping
30-day return
1year warranty
RV manual awning size guide
| Imperialsystem measurement | ||||||||||||||
| Measurement position sheet Unit : ft /in | ||||||||||||||
| Awning width(A) | 8' | 9' | 10' | 11' | 12' | 13' | 14' | 15' | 16' | 17' | 18' | 19' | 20' | 21' |
| Total Width (upper) | A+3.15" | |||||||||||||
| Fabric lock rail width | A-5.12” | |||||||||||||
| Fabric Width | A-10" | |||||||||||||
| Total Width(Bottom) | A+4.13" | |||||||||||||
| Folded arm height | 72.44" | |||||||||||||
| Extension(Max.) | 8' | |||||||||||||
AWNLUX RV Patio Manual Awning - White Frame
| Model : | W5600 |
| Awning Type: | Rv Awning Complete Kit |
| Frame Material : | Aluminum |
| Frame Color ： | Black/White |
| Fabric Material ： | 16 oz. Vinyl Vinyl |
| Size Range： | 8'~21’ft |
| Control System ： | Manual |
| Frame Material : | Aluminum |
| Frame Color ： | Black/White |
| Flame Retardant Rating: | B1 |
| Fabric : | 1000D PVC Tarpaulin |
| Max Extension: | 8' |
| Tearing Strength: | 325PSI |
| Tensile Strength: | 140 PSI |
| Protects Against: | Sunlight, rain, and more |
Our awning arrived as expected and when expected in good order. thanks!
I found my roller didn’t realize it was in three pieces. Thought it would be one piece. Awning looks great very simple to install.
I renewed my camper and the new awning is just beautiful!!
2 hours by myself and 2 ladders!
The quality is right and everything works well!
My wife and I installed this awning on a 2005 Cardinal 5th wheel in about 4 hours. I watched the video to get tips, and then used the instructions that came with the awning. Everything was reasonably clear and we did not encounter any issues with the installation. The quality of the parts and fabric were good, with the exception of the strap and pull hook - they were a little disappointing. Actually the pull hook went straight into the garbage. But luckily we were replacing a damaged awning and still had the pull hook from that awning.
The only other thing that I would point out is the placement of the retaining clip (when awning is retracted). It requires a ladder to reach. The factory awning had the retaining clip much lower on the bar, allowing for the awning to be extended without the need of a ladder or step stool. You can see this in the pictures.
The materials were all there, and they looked like they were in good shape. We got it installed in a few hours. The only reason I gave four stars instead of five is because not all the instructions were easy to understand. It would have been advantageous for them to hire a native English speaker to help write the instructions. As it is, we had to guess on a few things they were saying. Watch the video in addition to reading the instructions. The instructions said to attach the awning to the roller part first. The video said to attach the awning fabric to the RV first. Attaching it to the RV first would have been a LOT easier, but I didn't have room where the RV was parked. Installation definitely requires at least two people who can lift fairly heavy things. It's installed now, it's solid, and it's beautiful. I like how it is high enough on the RV that my door doesn't touch it like my old one did.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Awnlux Manual RV Awning
The Awnlux manual RV awning is perfect for RV enthusiasts seeking a reliable retractable awning. Our complete kits include an awning arm, roller tube, fabric, sail track, and all necessary parts. Made with sturdy aluminum alloy arms and roller tubes, and 16oz UV-resistant, waterproof, and mildew-resistant fabric, our awnings provide reliable shade and protection.
HOW IT WORK
How to measure and confirm your rv awning size
1. If there is an old awning on your RV，please measured the awning size from left arm center to right arm center.
2. If you have a new trailer, when you measured the awning, please avoid windows, doors, lights, cabins.
Meanwhile, please insure the awning position will not affect your daily life.
Product Details
TWO USAGE SCENE MODES
-
![]()
Security Lock
Open the security lock, you can fix the awning at any angle you want. Release the lock, and the awning can be opened and retracted at any time.
-
![]()
Adjustable Handle
The adjustable handle is simple to operate, allowing you to easily adjust the awning to your preferred height alone.
-
![]()
Switchable Mode Mount Bracket
Secure the RV awning arm firmly to your RV for safe and stable use. Simply unlock the fixed latch to easily switch between the two modes.
-
![]()
Strengthened Aluminum Alloy
The awning frame is constructed with strengthened aluminum alloy, ensuring its durability over an extended period of time.
PREMIUM 16OZ VINYL MATERIAL
-
![]()
Reinforced stitching on stresspoint to fix poly-cords.
-
![]()
Hot-pressing technology, traceless and secure
-
![]()
Double stitching on both sideedges to prevent fraying or burrs
-
![]()
Premium 16oz vinyl material with durability and water resistance
Shopping Tips
You will receive two boxes, one for the awning skeleton and one for the awning fabric. You can wait until both boxes arrive together before installing.
