A Solar RV Awning Combines Shade with Clean Energy
As RV travel, outdoor camping, and off-grid living continue to grow in popularity, RV users are placing greater importance on energy independence.
A traditional RV awning is primarily designed to:
- Provide a comfortable outdoor shaded area
- Reduce the interior temperature of the RV
- Protect against light rain and sunlight
- Extend the caravan living space
A Solar RV Awning builds on these traditional functions by adding solar power generation.
Simply put:
Solar RV Awning = RV Awning + CIGS Flexible Thin-Film Solar Technology + Pre-installed Power Output Cable
By utilizing the awning's expanded surface area, it converts sunlight into electricity, providing supplemental power for the RV battery system. The space that was originally used only for shade now also becomes a source of renewable energy.
Awnlux SOLARAWN is a new flexible solar awning solution developed around this concept. By integrating advanced CIGS flexible thin-film solar technology into an RV awning, SOLARAWN combines outdoor comfort with clean energy generation.

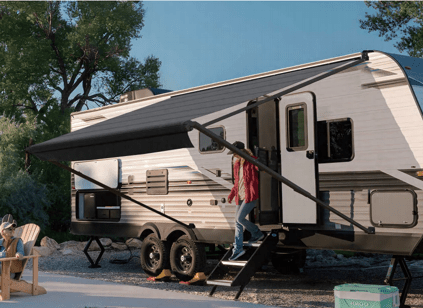

What Is a Solar RV Awning?
Definition of a Solar RV Awning
A Solar RV Awning is an innovative RV accessory that integrates solar power generation materials directly into the awning fabric.
Unlike conventional rooftop solar panels, a Solar RV Awning makes use of the awning area that RV owners already deploy during camping.
When the awning is extended:
- The awning creates a comfortable outdoor living space.
- The solar film absorbs sunlight.
- It generates direct current (DC) electricity.
- The generated power is stored in the RV battery through the energy management system.
Rather than being just another solar product, it is a power-generation solution designed around the way RV owners actually use their vehicles.
What Are the Main Components of a Solar RV Awning?
A complete Solar RV Awning consists of three key components.
1. RV Awning Structure
This is the mechanical foundation of the product.
Its primary functions include:
- Extending and retracting the awning
- Supporting the solar fabric
- Providing shade and weather protection
Structurally, it operates much like a conventional electric RV awning.
Users can still:
- Extend the awning after parking
- Enjoy the outdoor living space
- Retract it before departure
The difference is that the awning fabric now also generates electricity.
2. CIGS Flexible Thin-Film Solar Fabric (Core Technology)
CIGS is the key technology that distinguishes a solar awning from a conventional RV awning.
CIGS stands for:
Copper Indium Gallium Selenide
It is an advanced thin-film photovoltaic technology.
Compared with traditional crystalline silicon solar panels, CIGS offers greater flexibility and lighter weight, making it better suited for applications that require repeated deployment and retraction.
Advantages of CIGS Thin-Film Solar Technology
(1) Flexible Design for Awning Applications
CIGS thin-film technology offers:
- Excellent flexibility
- Lightweight construction
- Better adaptability to repeated awning extension and retraction
(2) Maximizes Existing Awning Space
Roof space on an RV is limited.
A Solar RV Awning makes use of an area that already exists.
When deployed:
- It provides shade without occupying additional roof space.
- It simultaneously generates solar power.
One space serves two purposes.
(3) Ideal for Mobile Energy Applications
RVs are used in a wide variety of environments, including:
- Campgrounds
- Deserts
- Beaches
- Forests
- Remote locations
CIGS thin-film technology is well suited to mobile applications that require:
- Lightweight design
- Flexibility
- Easy system integration
3. Solar Power Output Interface
The solar power generated by the awning is delivered through a pre-installed power output cable.
This output is designed to connect with the user's own RV electrical system.
How Does a Solar RV Awning Work?
How Solar RV Awning Generates Power
The operating principle of a Solar RV Awning is straightforward.
Step 1: Extend the Awning
After parking the RV, the user extends the awning.
At this point:
- The awning provides a shaded outdoor living area.
- The solar film is exposed to sunlight.
Step 2: The CIGS Solar Film Converts Sunlight into Electricity
The CIGS thin-film cells convert sunlight into DC electricity through the photovoltaic effect.
Power output depends on several factors, including:
- Solar irradiance
- Geographic location
- Season
- Weather conditions
- Awning size
Step 3: Connect to an MPPT Solar Charge Controller
The awning outputs solar-generated DC electricity.
Users need to connect:
- An MPPT solar charge controller
- An RV battery
- An inverter
Step 4: Store and Use the Energy
After being managed by the power system, the stored electricity can be used for:
- RV lighting
- Charging phones and electronic devices
- Refrigerators
-
Small household appliances
Does SOLARAWN Include a Complete Solar Power System?
No. SOLARAWN Provides Solar Power Output Only.
This is one of the most common misunderstandings.
A SOLARAWN solar awning includes:
- RV awning structure
- CIGS thin-film solar module
- Solar power output interface
Users need to configure their own:
- MPPT charge controller
- Battery system
- Inverter
This flexible design allows RV owners to choose the battery capacity, inverter size, and electrical system that best suit their individual needs.
How Much Power Can a Solar RV Awning Generate?
Actual power generation depends on:
- Awning dimensions
- Solar module power rating
- Sunlight conditions
- Installation environment
For example:
A 19-foot roll-out Solar RV Awning can achieve a maximum output (Pmax) of 1,400 W. Under favorable sunlight conditions, it can continuously supplement power for the RV battery system.
However, actual power output will not always equal the rated maximum.
Weather, temperature, sun angle, and shading all affect solar
performance.
Therefore, a Solar RV Awning is best suited as:
- A supplemental power source
- An off-grid energy solution
- A premium RV upgrade
Who Is a Solar RV Awning Designed For?
|
User |
Applications |
Benefits |
|
Long-distance travelers and off-grid campers |
Extended outdoor stays, wilderness camping, national parks |
Greater energy independence and reduced reliance on external power |
|
RV converters and upgrade specialists |
Camper Vans, Motorhomes, Caravans, Expedition Vehicles |
Premium upgrades, product differentiation, renewable energy features |
|
RV manufacturers and distributors |
OEM applications |
Renewable energy solutions for premium RV models and expanded product offerings |
What Is the Difference Between a Solar RV Awning and Traditional Solar Crystalline Silicon Panels?
|
Comparison |
Solar RV Awning |
Traditional Solar Panel |
|
Primary Function |
Shade + Power Generation |
Power Generation |
|
Installation Location |
RV Awning |
RV Roof |
|
Occupies Roof Space |
No |
Yes |
|
Retractable |
Yes |
Typically No |
|
Operating Mode |
Generates power when deployed |
Generates power whenever exposed to sunlight |
The two solutions are not competitors.
Many RV owners combine:
- Rooftop solar panels
- Solar RV Awning
to build a more comprehensive solar energy system.
FAQ
Q1: Can a Solar RV Awning replace rooftop solar panels?
No.
A Solar RV Awning is primarily designed as a supplemental power source and works well alongside rooftop solar panels.
Q2: Does SOLARAWN include a battery or inverter?
No.
SOLARAWN provides the solar power output interface only.
Users need to connect their own:
- MPPT charge controller
- Battery
- Inverter
Q3: Why Choose CIGS Thin-Film Technology?
RV awnings are frequently extended and retracted, so the solar modules need to be flexible, lightweight, and highly resistant to repeated bending.
According to publicly available research published by Fraunhofer ISE (Germany) and the U.S. National Renewable Energy Laboratory (NREL), CIGS is one of the highest-efficiency flexible thin-film photovoltaic technologies, with laboratory cell efficiencies exceeding 22%. Compared with conventional crystalline silicon modules, CIGS is lighter, more flexible, and better suited for RV solar awnings that are repeatedly deployed and retracted.
Q4: Can a Solar RV Awning generate electricity on cloudy days?
Yes.
It can still generate electricity under cloudy conditions, although the output will be lower than under direct sunlight.
Conclusion: Solar RV Awnings Are Redefining Mobile Energy for RVs
A Solar RV Awning is more than an upgrade to a traditional awning. It represents the future direction of RV energy systems—lighter, smarter, and more versatile.
SOLARAWN enables RV users to enjoy outdoor living while gaining greater energy freedom.
Awnlux SOLARAWN is designed to enhance energy efficiency without changing the way RV owners use their awnings. It transforms existing shaded space into a valuable source of renewable energy.
