Have you ever worried that your RV awning might suddenly come loose—in heavy rain and wind, on the highway, or while your family is relaxing underneath it?
An awning tearing away from the RV can damage the sidewall, create a serious safety risk, and leave you with thousands of dollars in repairs.
When it happens, most people may say:
“Damn awning!”
But is the awning always the real problem?
Not necessarily.
In real cases shared by RV owners, the awning arms, roller tube, and even the mounting hardware sometimes stayed intact. What failed was the RV wall holding them.
And this isn't limited to one brand. Owners of Coachmen, Grand Design, Glacier Peak, and Airstream RVs, using awnings from brands such as Dometic and Carefree, have discussed similar problems online.
Rotten wood, weak mounting points, poor installation, wind, rain, road vibration, and impact can all cause an awning to pull away.
So before blaming the awning, check three things: the RV itself, the installation, and how the awning has been used.
1. The RV Body: What Is Behind Your Awning?
Depending on its size and design, an RV awning can weigh 20–40 kg (44–88 lbs). Wind, rain, road vibration, and leverage can put even more force on the mounting points.
That is why awning manufacturers repeatedly say that an awning must be installed at reinforced mounting points on the RV, not just attached to the outer skin.
Fiberglass (Filon), thin aluminum, or lightweight composite panels are not designed to hold the full weight and force of an awning by themselves.
The real support usually comes from wood backing, aluminum or steel framing, support beams, or reinforcement plates hidden inside the wall.
If the wood is rotten—or the screws miss these reinforced areas—the awning may look secure but isn't. Under wind or road vibration, the screws can pull out of the RV wall and take part of the sidewall with them.
Water Can Damage the Wall From the Inside
Awning rails and brackets require holes through the RV exterior. These holes are sealed during installation, but sealant does not last forever.
Over time, it can crack, shrink, or separate.
Water can then get in around the screws and slowly damage the wood behind the wall.
The dangerous part is that you may not see it.
By the time a screw starts spinning or a bracket starts pulling away, the wood inside may already be badly damaged.
A real case on the Good Sam Community shows exactly this. An owner reported that the bottom awning support had pulled out. After checking the area, the owner found that the wood behind it was rotten and could no longer hold the screws.
Quick Check: Don't Ignore These Signs
l Look around your awning mounting points for:
l Soft areas on the RV wall
l Cracked or loose sealant
l Water or rust-colored stains
l Delamination
l Enlarged screw holes
l Screws that spin without tightening
l A growing gap between the awning rail or bracket and the RV
QUICK TIP: If a mounting screw keeps spinning, stop tightening it. Check the hole and what is behind the wall first.
If the wall structure is damaged, simply installing a bigger screw is not always a real repair.
2. Installation: A Tight Screw Doesn't Always Mean a Secure Awning
Even if the RV wall is in good condition, the installation can still cause problems.
A screw may feel tight but miss the reinforced area behind the wall. It may catch only the edge of the frame, be too short, or damage the hole from being over-tightened.
Replacing an Old Awning? Be Careful With the Old Holes
This is especially important when replacing a complete Dometic, Carefree, Lippert/Solera, or other RV awning system.
The old mounting holes may have already been used for many years. Road vibration and repeated awning cycles can make them larger or weaker.
The mounting points of the replacement awning may also be different from the old system.
For this reason, we generally don't recommend automatically using the old holes for a complete awning replacement.
First find the RV's reinforced mounting area. If the RV construction and installation requirements allow it, use strong mounting points rather than assuming the old holes are still good.
REPLACEMENT TIP: Old holes are convenient, but convenience doesn't mean they are still strong. Check the RV structure before installing a replacement awning.
This matters whether you're replacing an older Dometic, Carefree, or Solera system with the same brand or installing an Awnlux replacement RV awning. The new awning is only as secure as the RV structure holding it.
Alignment and Operation Matter Too
Installation is not only about screws.
On common Dometic and Carefree roll-up or electric awnings, the arm brackets and awning rail are major load points.
The force should be spread evenly across these points when the awning opens and closes.
If the arms, roller, rail, or fabric are bent or out of line—or the awning is forced open or closed—the force may no longer be spread evenly.
One bracket or mounting point may then take too much load.
A good example comes from an owner of a 2015 Coachmen Apex 269RBSS.
The vertical awning channels pulled away from the RV when the awning was fully closed. When the awning was opened slightly, the channels moved back toward the wall.
That tells us the problem may be more than a loose screw. Something in the system may be putting extra pulling force on the mounting points.
A Grand Design Reflection 303RLS owner also reported a similar mounting issue in the same discussion.
If your awning brackets move, twist, or pull away from the wall while opening or closing, don't just tighten the screws. Find out why it is happening.
Which Fastener Should You Use?
There is no single fastener that works for every RV.
|
Mounting / Repair Option |
May Be Useful When |
Check Before Using |
|
Larger screw |
The existing hole is slightly enlarged |
Is there still strong material behind the hole? |
|
Rivnut / Plusnut |
Some thin-wall or metal structures |
Is this type of fastener suitable for your RV wall? |
|
Backing plate |
The mounting area can be reached from inside |
Is there enough access and a strong surface for the plate? |
|
New mounting point |
The old hole is weak or damaged |
Where is the RV's reinforced mounting area? |
Grand Design owners have discussed Oscar-style rivets for some awning mounting repairs, while Airstream owners have discussed Rivnuts, aluminum plates, C-channels, and backing plates.
These are useful examples, not universal repair instructions.
An Airstream aluminum body is not built the same way as a Coachmen or Grand Design wall.
INSTALLATION TIP: Don't choose the fastener first. Find out what is behind the RV wall first.
3. Everyday Use: Wind, Rain, Impact and Road Vibration
Even a good awning installed correctly on a strong RV has limits.

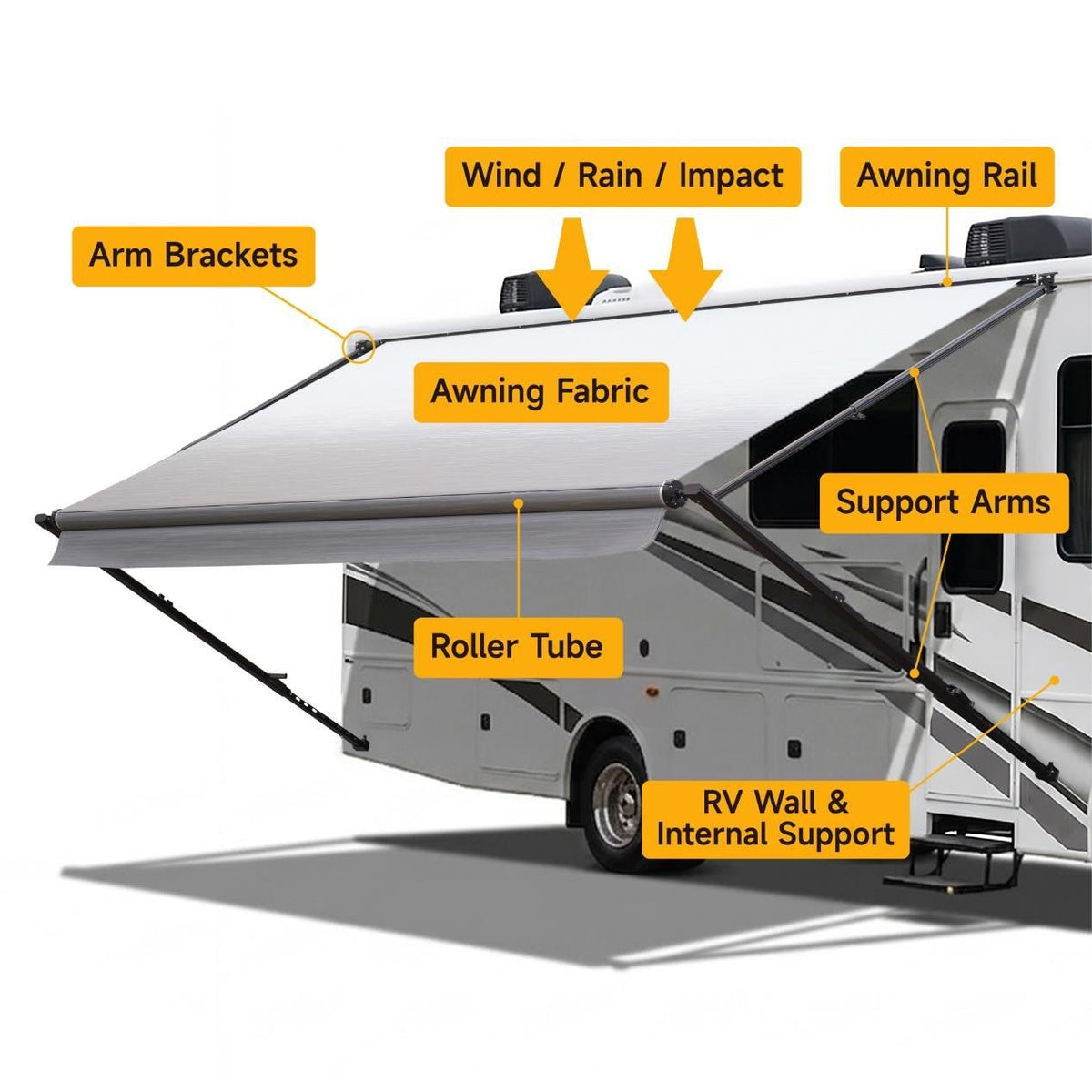

How Force Travels Through an RV Awning
The important point is simple:
The force may start at the awning, but the failure can happen anywhere along this path.
l The fabric may tear.
l An arm may bend.
l A bracket may break.
l A screw may pull out.
l Or the RV wall itself may fail.
Wind
An extended awning works like a large sail.
Wind pushes and lifts the fabric. That force travels through the roller and arms, into the brackets and screws, and finally into the RV wall.
Sometimes the awning breaks first.
Sometimes the mounting point does.
This is why manufacturers such as Dometic, Carefree, Solera, Awnlux, and others recommend retracting patio awnings when weather conditions become unsafe.
There is no single wind speed that is safe for every awning.
A 12-foot awning and a 20-foot awning do not catch the same amount of wind. Wind direction, sudden gusts, how far the awning is extended, RV construction, and installation all matter.
WEATHER TIP: If your awning starts lifting, shaking, or flapping hard, retract it. Don't wait to see which part fails first.
Rain
Rain creates a different problem.
If water collects on the fabric, the extra weight is carried by the roller, arms, brackets, and mounting points.
If your awning has an adjustable rain pitch or water-dump function, use it according to the manufacturer's instructions.
During heavy storms, retracting the awning is the safer choice.
Impact
Sometimes the cause is much simpler: the awning hits something.
One owner on r/RVLiving accidentally hit a post and damaged an awning mount.
After checking the damage, the owner found something interesting: the bolts had not broken. They had pulled through the RV wall.
That case makes the relationship very clear.
The force reached the awning mount, but the wall around the mounting point failed first.
Road Vibration
Your awning may be closed while driving, but the mounting points are still being shaken for hundreds or thousands of miles.
A slightly loose screw can slowly become a much bigger problem.
Check the brackets, awning rail, screws, and sealant regularly—especially before a long trip.
Before You Blame the Awning, Find Out What Failed
If your awning starts pulling away from the RV, don't immediately put the screws back in or replace the whole awning.
First find the problem.
|
What You See |
What to Check |
|
Arms and brackets look fine, but screws pulled out |
Check the RV wall and support behind it |
|
Screws keep spinning |
Check the mounting holes and material behind them |
|
Wall feels soft or looks swollen |
Check for water damage |
|
Brackets move while opening or closing |
Check alignment and installation |
|
Arm, roller, or bracket is broken |
Inspect the awning itself and what caused the damage |
|
Failure happened after wind, rain, or impact |
Inspect both the awning and the RV mounting structure |
What Should You Do Next?
If your awning is already pulling away from the RV wall, stop using it until the cause has been checked.
For loose mounting points, wall damage, water damage, or installation problems, contact a local RV repair shop or your RV dealer. They can inspect the structure behind the wall and determine the correct repair for your specific RV.
Once the RV wall and mounting area have been confirmed to be in good condition, you can decide whether the existing awning can be reinstalled or needs to be replaced.
If you need a replacement, Awnlux offers RV awning systems for many common Dometic, Carefree, and Lippert/Solera replacement applications.
Fix the RV first. Then choose the right awning.
