How to Install, maintain and repair of RV Slide Topper Awnings

How to Install, maintain and repair of RV Slide Topper Awnings

Awnlux RVCAMPS |

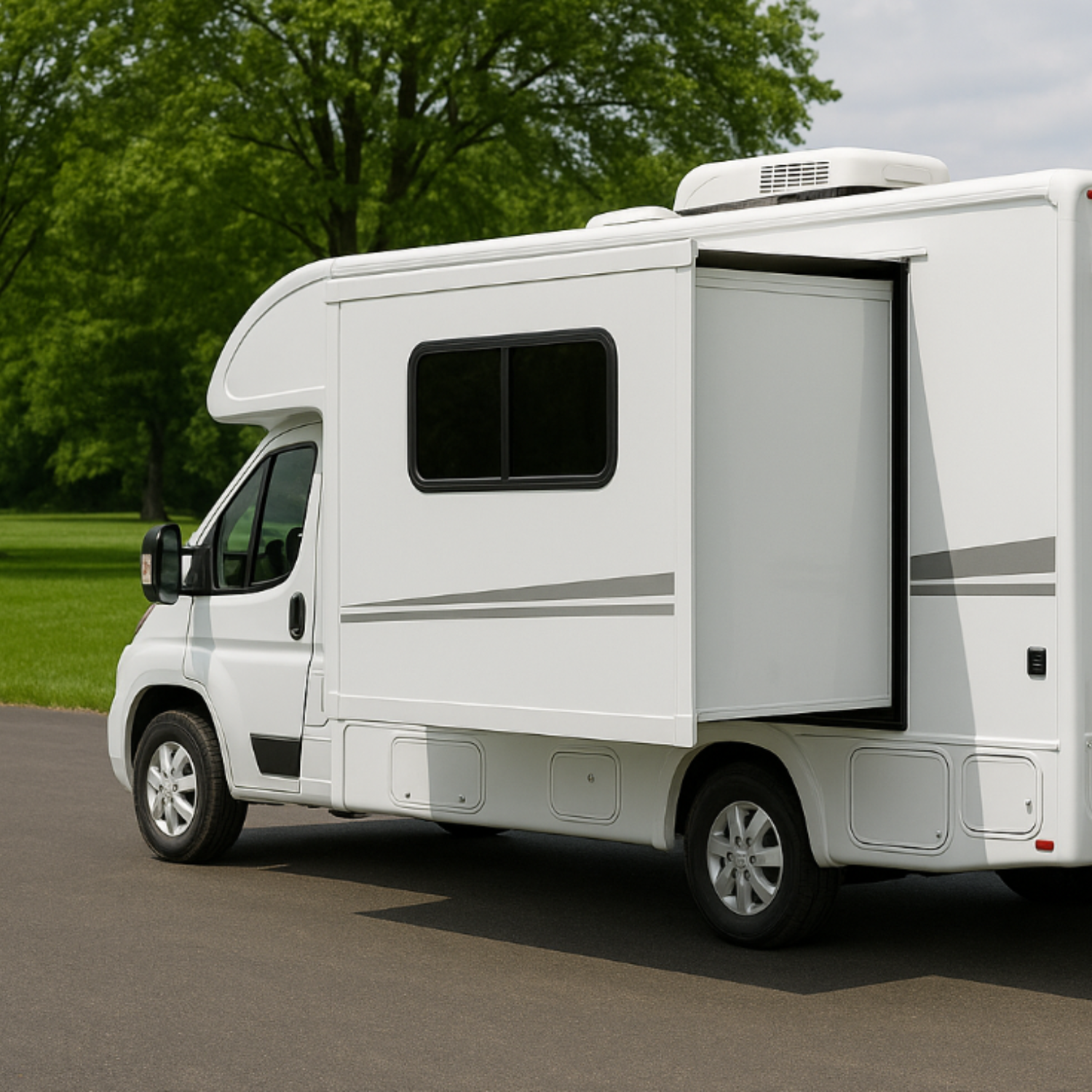

RV slide topper main function is to protect the rear and side slide out box of RV from damaged. These slide out box withstand all kinds of weather, the sun, rain, wind. Improper installation may result in fabric been loose, the bracket deformed, or damage the whole slide out box system even the RV itself.

Also, proper maintenance is crucial, for example, if the slide topper retracts without cleaning after long-term use, the fabric could be easily moldy.  and rains will rust the bracket, It is hard to retract or stock when using it. So the correct usage and clean as well as regular inspections not only extend the slide topper service life but also ensure a happy camping trip every time.

This blog will guide you step-by-step on how to install, clean, and repair a slide topper  awning in the correct way

There are two types of Slide topper for your choice: no cassette VS cassette design

1. No cassette : just like solera, Dometic, Carefree of Colorado, and Awnlux,  these do not require a casing for protection the fabric

Advantage: Lightweight, simpler to install.

Disadvantage: No cassette to protect the fabric, the fabric may easy wear and aging.

2. Cassette design: this design will storage the whole system and fabric into a cassette, Awnlux, Carefree and domestic all have the cassette design.

Advantage: anti dust and waterproof, extend the fabric service time. installation space requirements isn't rigorous

Disadvantage: a little bit heavy than the normal slide topper.

3. And the fabric is also a little bit different , the below is the different for refence

Most of the slide topper all use Aluminum Alloy, because it is lightweight and anti rust, good choice for RVs.

RVs slide topper Installation Guide

1. The preparation of Pre-Installation

Prepare the following tools

Electric drill (with RV-specific drill bits)

Level

Measuring tape or Laser measurer

Wrench set (including Allen keys)

Construction adhesive

Marker pen

There are the based tools, or you may would prepare more which can help you install the slide topper

2.To keep your safety, prepare the below safety gear.

Anti-slip ladder

Gloves and safety goggles

Also check the slide topper content if including the follows.

Confirm all parts are included (brackets, screws, fabric, etc.)

At the same time, identify the load-bearing areas of the slide out box, also need to avoid insulation layers or thin metal sheets.

Installation Steps

1. Measure size and mark

Exactly measurements to make sure the suitable coverage and operation of the slide topper awning. the slide topper size is depending on your RV's slide-out size. Make sure the slide topper awning would cover the entire slide out box, including flange.

2. Install brackets

Before installation, make sure the slide-out is retracted. Marked bracket positions and slide out awning measurement on the compartment, then fix the mounting brackets with screws.

3. Install fabric

There are two threading slots on the fabric: one threads into the lock strip, and the other into the roller groove.  then wind the fabric onto the roller clockwise.

4. The test of operation

Extend and retract the slide-out to test the slide out topper awning. If the fabric is shifts, please adjust it by pulling along the lock strip.

Some maintenance tips

1.Clean regularly

Use a soft brush, clean water and mild soap. Avoid using pressure washers or caustic chemicals.

2.Protect from sunlight and mildew

Put away when not use it. Store in a dry place to prevent mildew. Dry completely after rain day use before storing.

3. Inspect and lubricate

Inspect screws and joints regularly. Lubricate metal frame and telescopic mechanism.

Most Common User Questions & Solutions

No.1. There is a Solera awning on the slide out, no space to install slide topper, but i really want to a slide topper to protect my slide out box, how should we do?

 Solution: Check the size and reinforcement areas of the currently awning brackets. If there's slight space available, consider trimming the awning fabric lock strip to install the slide topper brackets without affecting the original awning.

No.2  Both side all with awnings already ,which will result stop the slide topper bracket install because no room to install the slide out topper awning

Solution: Use a cassette slide topper awning like Awnlux’s new model W5280, which eliminates length restrictions caused by hex rods. (Refer to Awnlux W5280 YouTube video link below)

https://youtu.be/ynO_xd76Zz4

No.3. The fabric with Pooling Water

Solution: It's caused by unsuitable installation angle or weak spring tension. please adjust spring loops and incline angle well.

No. 4 The surface of slide out box is not smooth

Solution: Use a steel shim under the awning bracket.

No.5 We Already Installed a Carefree awning, but it broken, only left the bracket on the slide out, and we also don't want to remove it, should we only use the original brand or if we can use another brand like Awnlux or Dometic

Solution: It is not necessary. If you use other brands, confirm the size and position of the installation code in advance, check whether the telescopic range matches and whether drilling or rewiring is required, and do waterproofing at the back end. A new brand is also a different enjoyment.

Regular cleaning of the expansion tent can not only extend the service life of the tent, but also protect the expansion compartment for a long time. It is very important to select and install the appropriate expansion tent. However, please pay attention to safety during the installation process. Please follow the instructions of the expansion tent step by step. The design of each brand is different, and the installation is also different, so avoid installation errors. If you cannot install it, it is recommended to ask a professional to install it.
